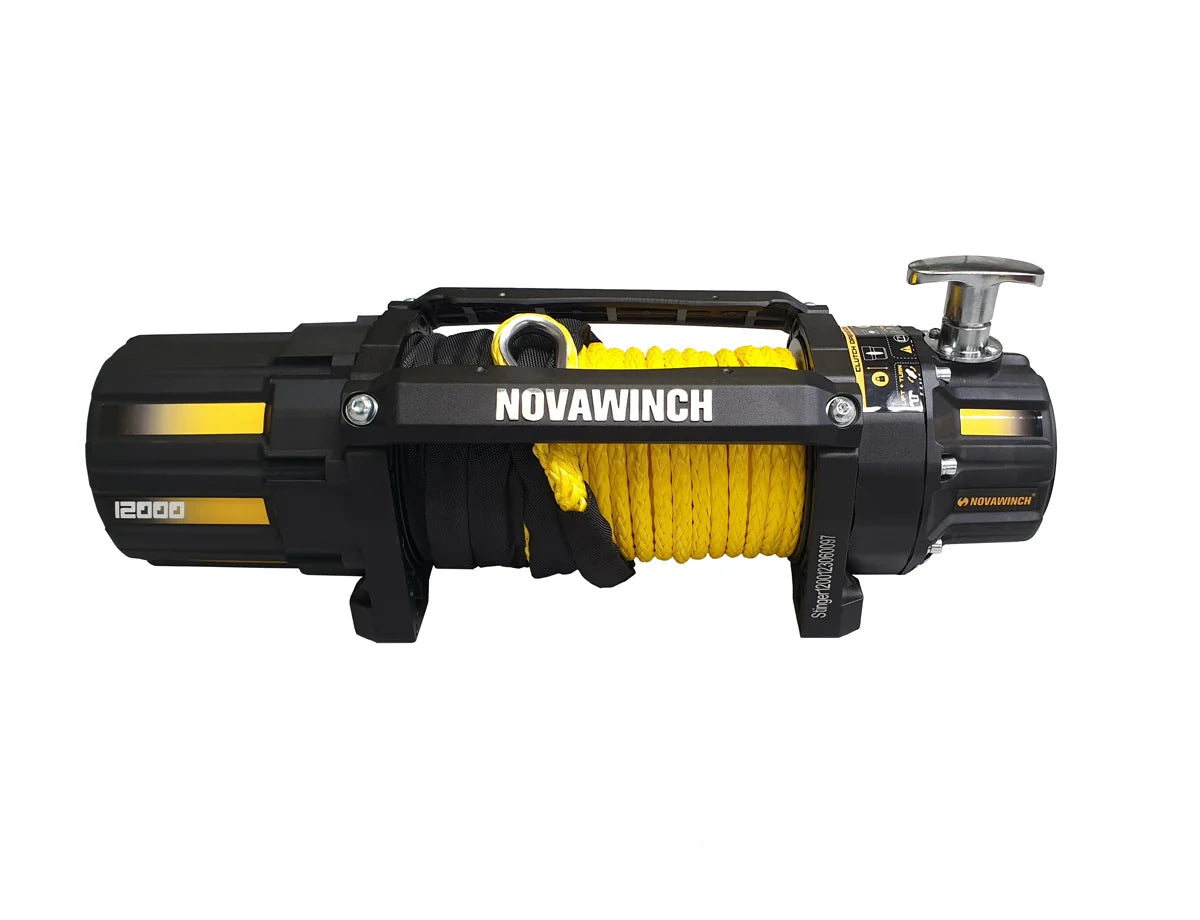

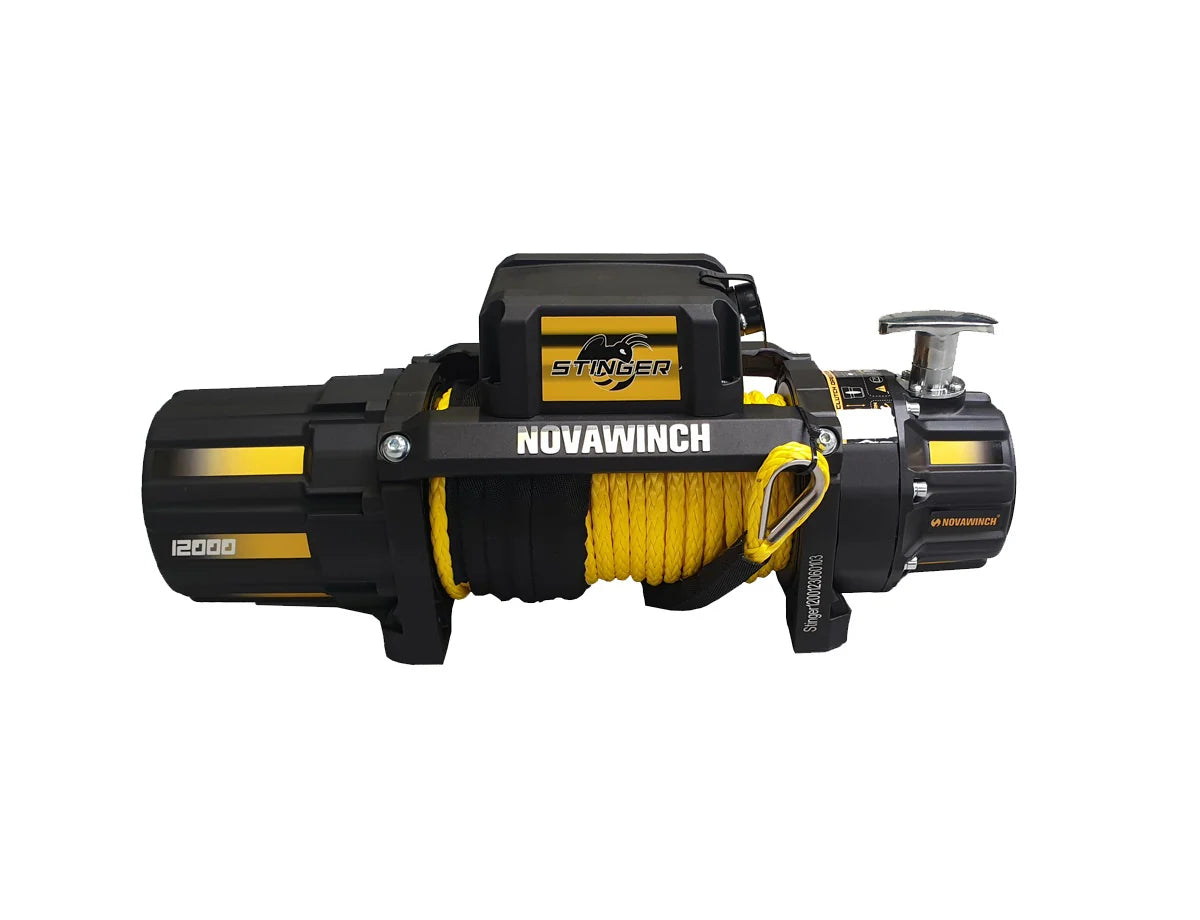

Novawinch Stinger+ Electric Winch - 12,000lb 12 volt with Wireless Remote

Regular price $1,150.00 NZD
Regular price Sale price $1,150.00 NZD
css

Tax included. Shipping calculated at checkout.

The Stinger+ is Nova Winches newest multipurpose electric winch built for truck, recovery and trailer use. A compact winch design that suits most applications.

This 4WD winch has longer (800mm long) solenoid enclosure box leads for improved mounting versatility. The solenoid enclosure can be remote-mounted or mounted to winch tie bars.

Novawinch winches are the perfect option for people seeking affordable winch options that deliver excellent performance backed by an industry-leading warranty.

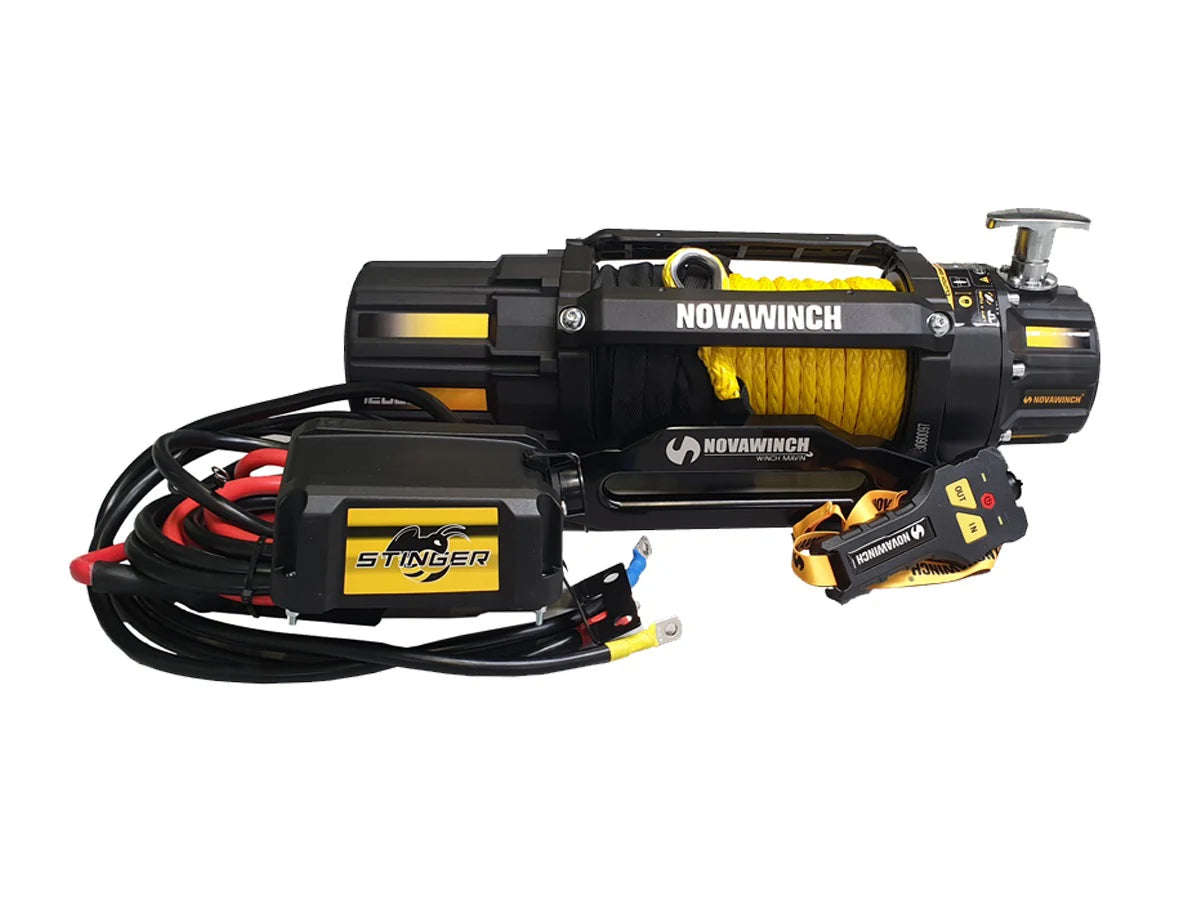

Includes:

  • 12-volt foot-down Stinger+ electric winch (free spool T bar can be rotated)
  • DUO Wireless/Wired controller with integrated receiver
  • Fairlead
  • Synthetic rope
  • Winch hook

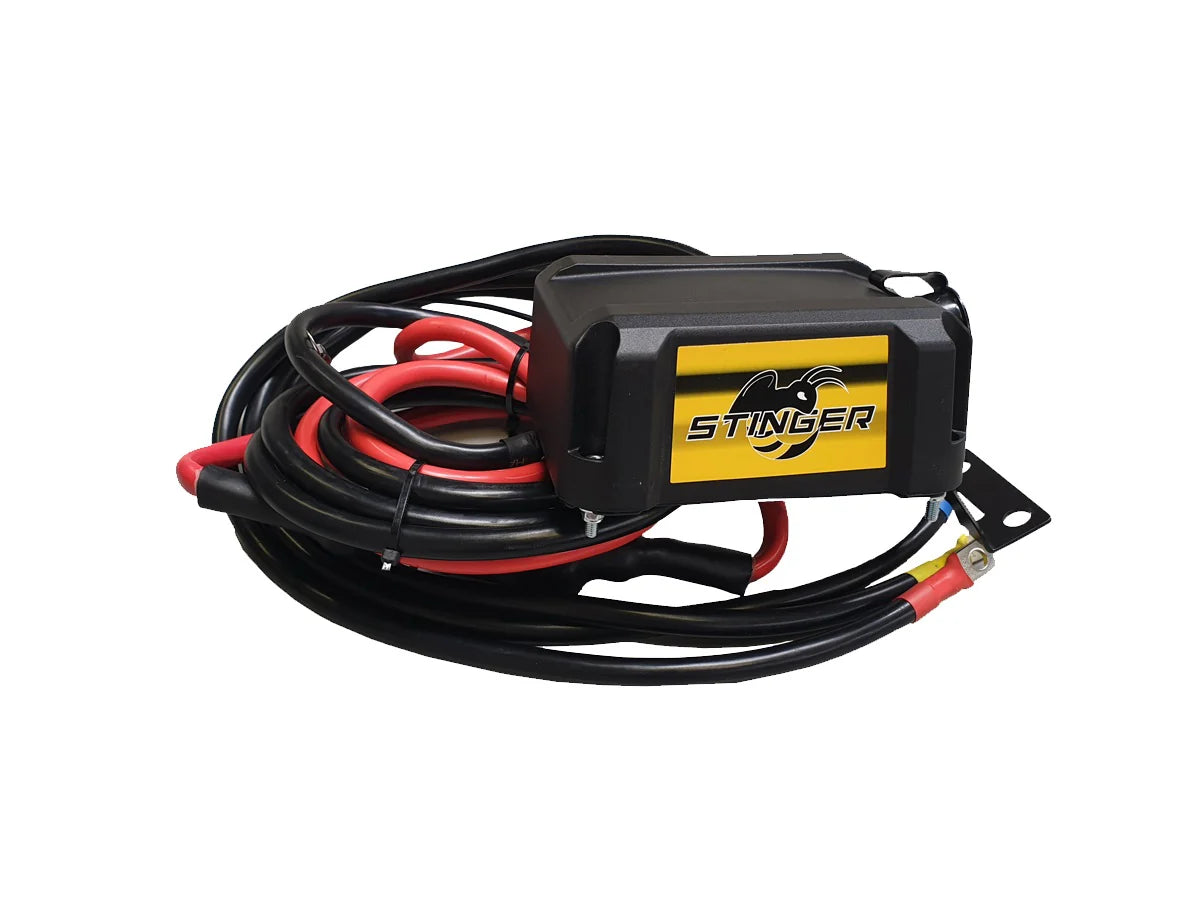

  • Solenoid enclosure with wiring to suit mounting to the winch tie bars
  • Ancillary - Solenoid enclosure remote mounting bracket kit - includes solenoid enclosure remote mounting bracket and 800mm long remote mount power leads
  • Mounting hardware

Key Features

  • Longer, 800mm long solenoid control box lead allows greater installation versatility.
  • Solenoid enclosure can be remote-mounted or mounted to the winch tie bars.
  • High Torque Motor - Thicker copper windings deliver more power with ease and cool faster. Ultra-heavy-duty silver contacts keep the Novawinch contactor running at lower temperatures.
  • Drive - Large-diameter splined drum to maximize power-transfer.

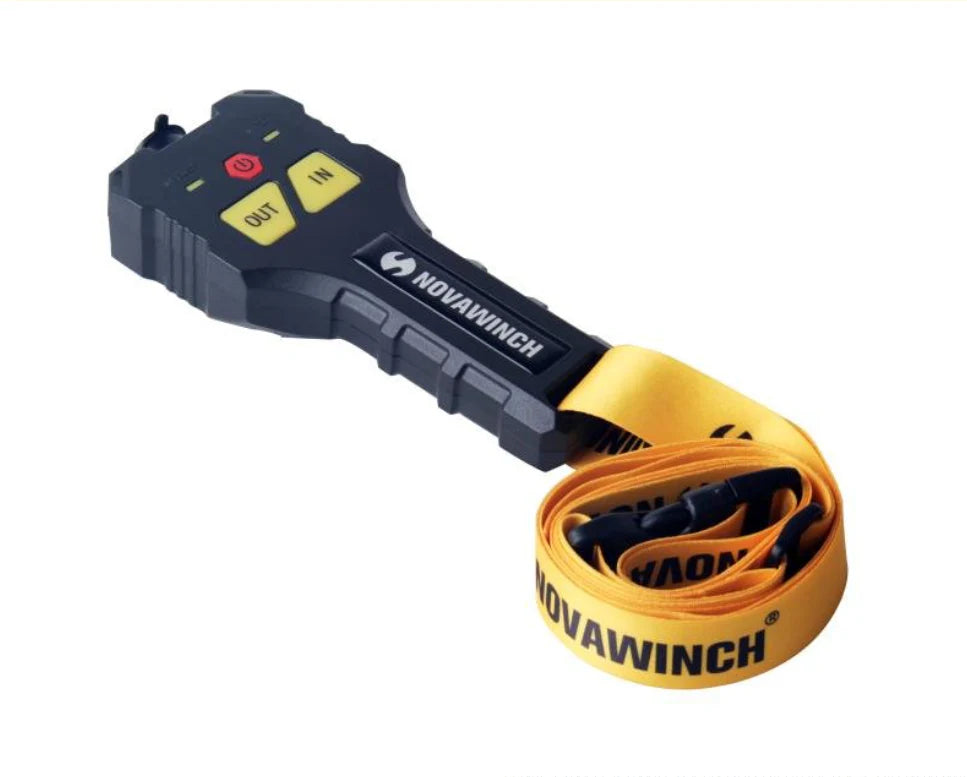

  • Novawinch dual function wireless/wired controller offers remote push-button control of winch operation.
  • Winch Rope - High-visibility rope makes rigging safer in low-light operations.
  • Weatherproofing - The IP68-rated seals keep out water, mud, sand and dust.
  • Safety: Pull and turn clutch avoids unintended free spooling on the trail.

Winch Specs

  • Rated Line Pull: 12000 lbs. (5443 kg)
  • Voltage: 12v DC
  • Motor: 7.0hp (5.4kW)
  • Gear Train: 3 Stage Planetary
  • Gear Ratio: 196:1 / 20ftpm unloaded line speed
  • Clutch: Pull & Turn
  • Braking Action: Mechanical, Auto Load Holding
  • Synthetic Rope: 3/8” x 85.3’ (9.2mm x 26m), CNC'd Aluminum Hawse
  • Drum Size: 2.48” x8.8” (63mm x 244mm)
  • Winch Dimensions: 21.257” x 6.49” x9.05” (540x165x230mm)
  • Mounting Bolt Pattern: 10” x 4.5” (254mm x 114.3mm)
  • Remote: Wired, 12’ (3.4m)
  • Weight: 68.2 lbs (30.9kgs)



*If your address is deemed as being a rural or remote address this item will need to be picked up from your closest Mainfreight depot. Alternatively you can have this item delivered to another non rural address. Please contact us if you have any questions
