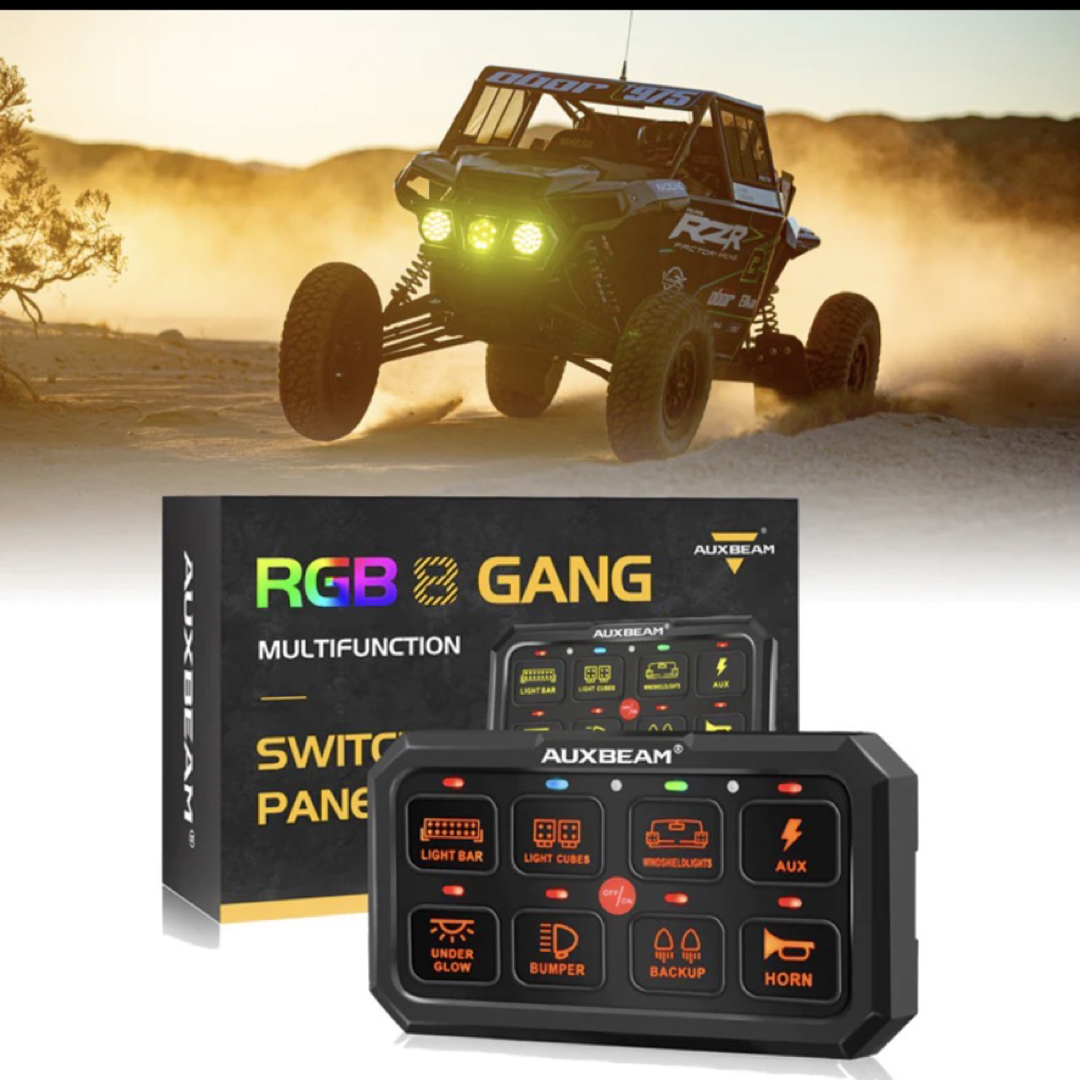

Auxbeam RGB 8 Gang switch panel

Auxbeam RGB 8 Gang switch panel

Specification:
Working voltage: DC 12-24V
Max current: 60A
Rated voltage: 12V 20A / 24V 10A
Operating at 12 Volts: max power rating of 720W
Operating at 24 Volts: max power rating of 1200W
Switch operation: On-Off
Operating temperature: -40°C - +105°C
Waterproof rating: IP65

Features:

RA80 XL RGB Switch Panel

• 8-Gang one-sided outlet switch panel. It allows you to control up to 8 different LED lights or devices just from one convenient place at the same time

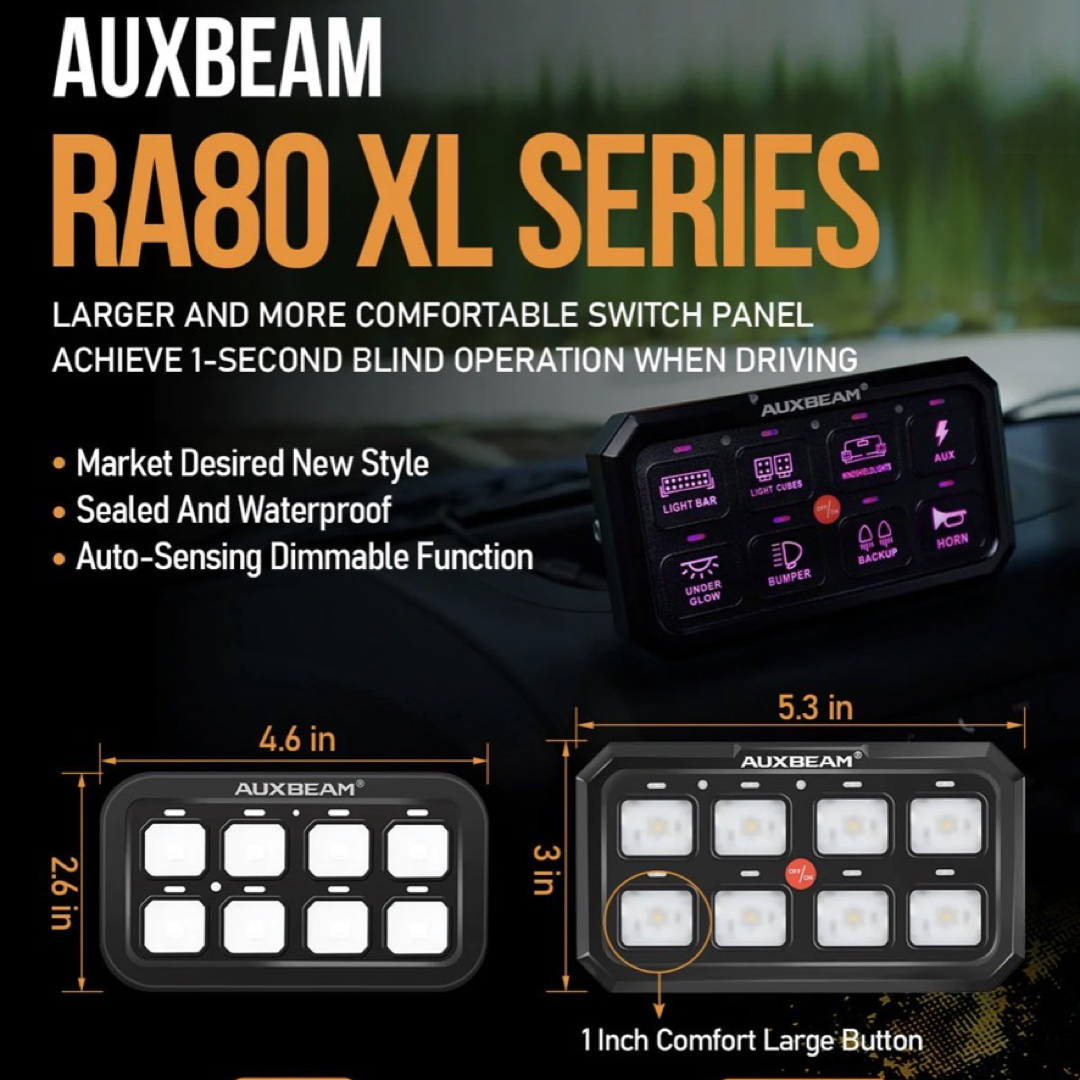

• XL size. 5 Inch panel & 1 Inch button.
• 3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
• RED-Toggle, Constant light mode (Great for things like fog lights or driving. )
• BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off, just like pressing the horn button.
• GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.
• RGB backlight color. Adjust backlight color and brightness to match your vehicle.
• Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
• Customize your own switch panel with 60 universal stickers. Use the provided switch labels to indicate what’s connected to that switch.
• Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
• Waterproof IP65, high sensitivity, stability and strong anti-interference ability
• Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
• With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.
• 3.94FT Extension Cable
• Power input DC 12V - DC 24V.
• Specially thick hard wire provides super protection against EMI interference and RF interference such as automotive circuit interference.
• 20FT Extension Cable
• 120 Universal Stickers

Package Included:

1 Set of RA80 XL Switch Panel (all necessary hardware and wiring harness is included)
Installation Instructions
