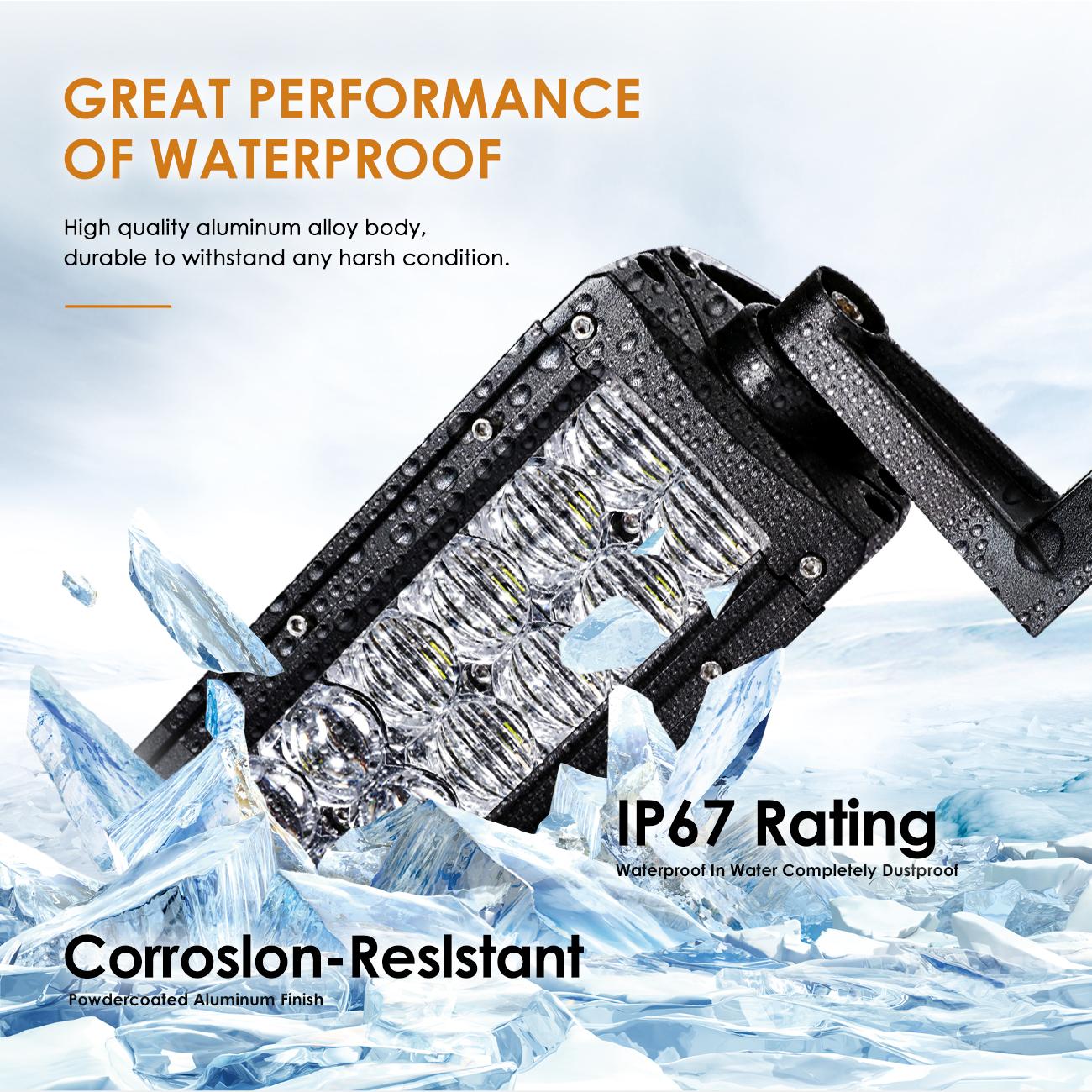

  • 22" Curved CREE LED Light Bar 5D Lens 12000LM IP67 Rating waterproof
  • 22" Curved CREE LED Light Bar 5D Lens 12000LM IP67 Rating waterproof

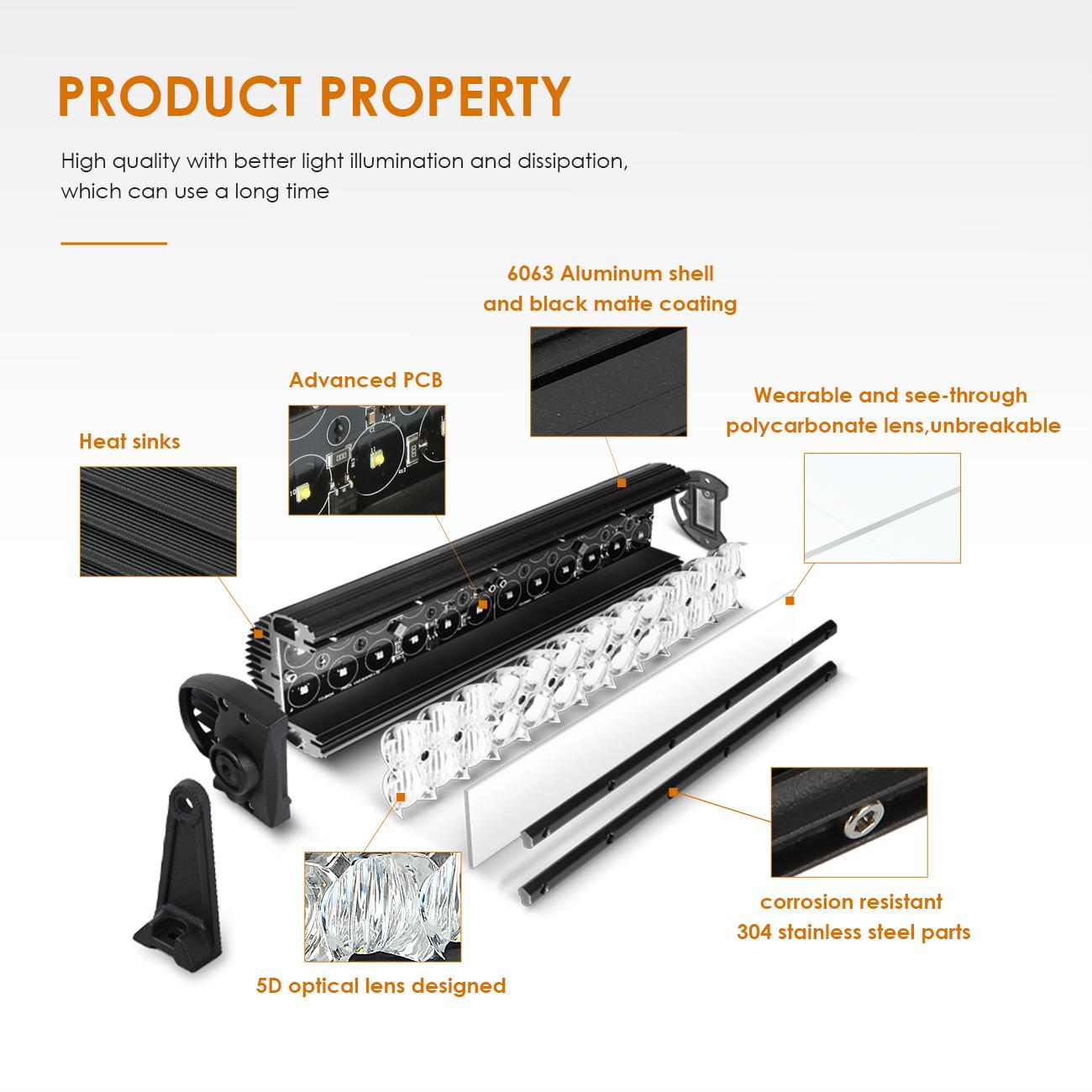

  • 22" Curved CREE LED Light Bar 5D Lens 12000LM product breakdown

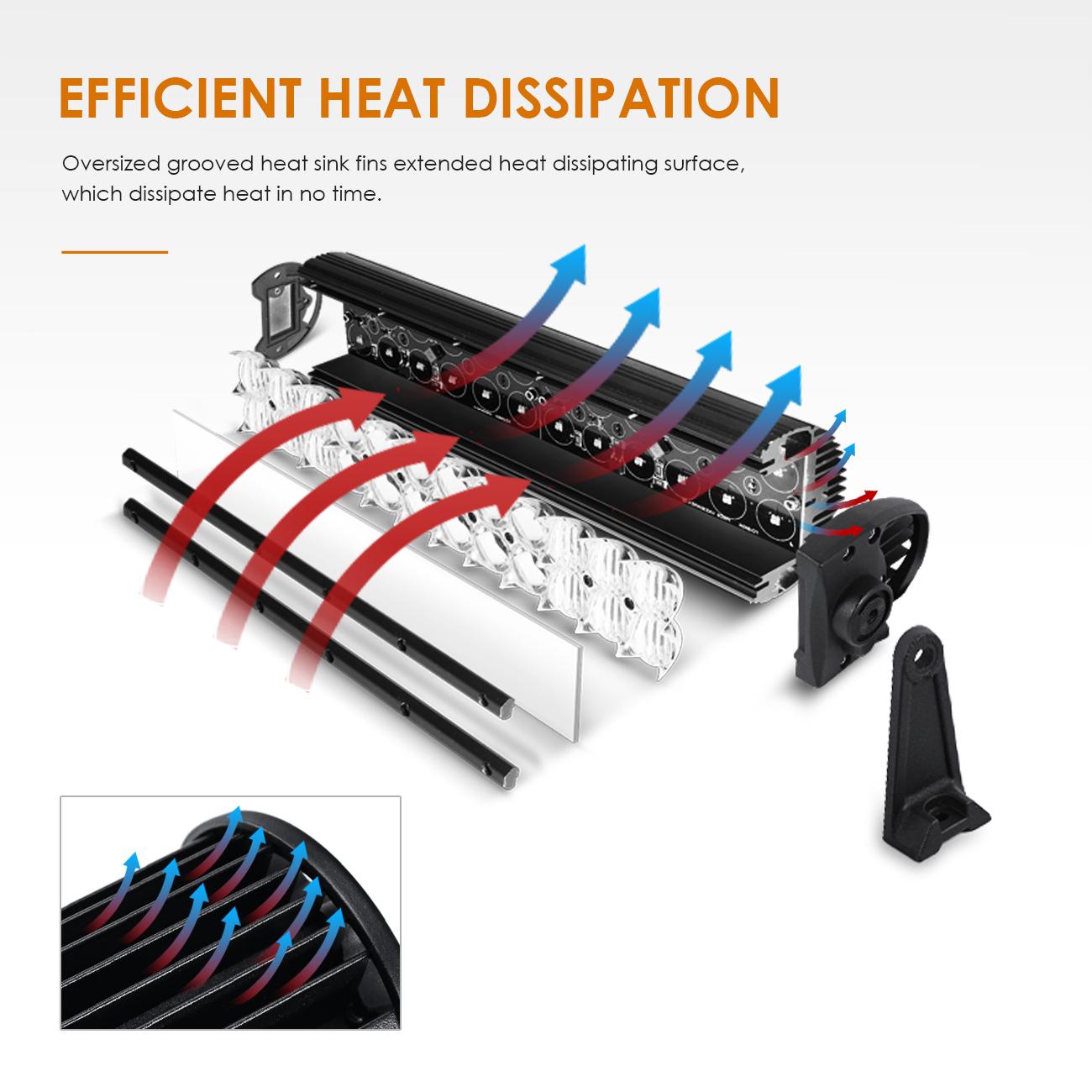

  • 22" Curved CREE LED Light Bar 5D Lens 12000LM efficient heat dissipation
  • 22" Curved CREE LED Light Bar 5D Lens 12000LM fuse

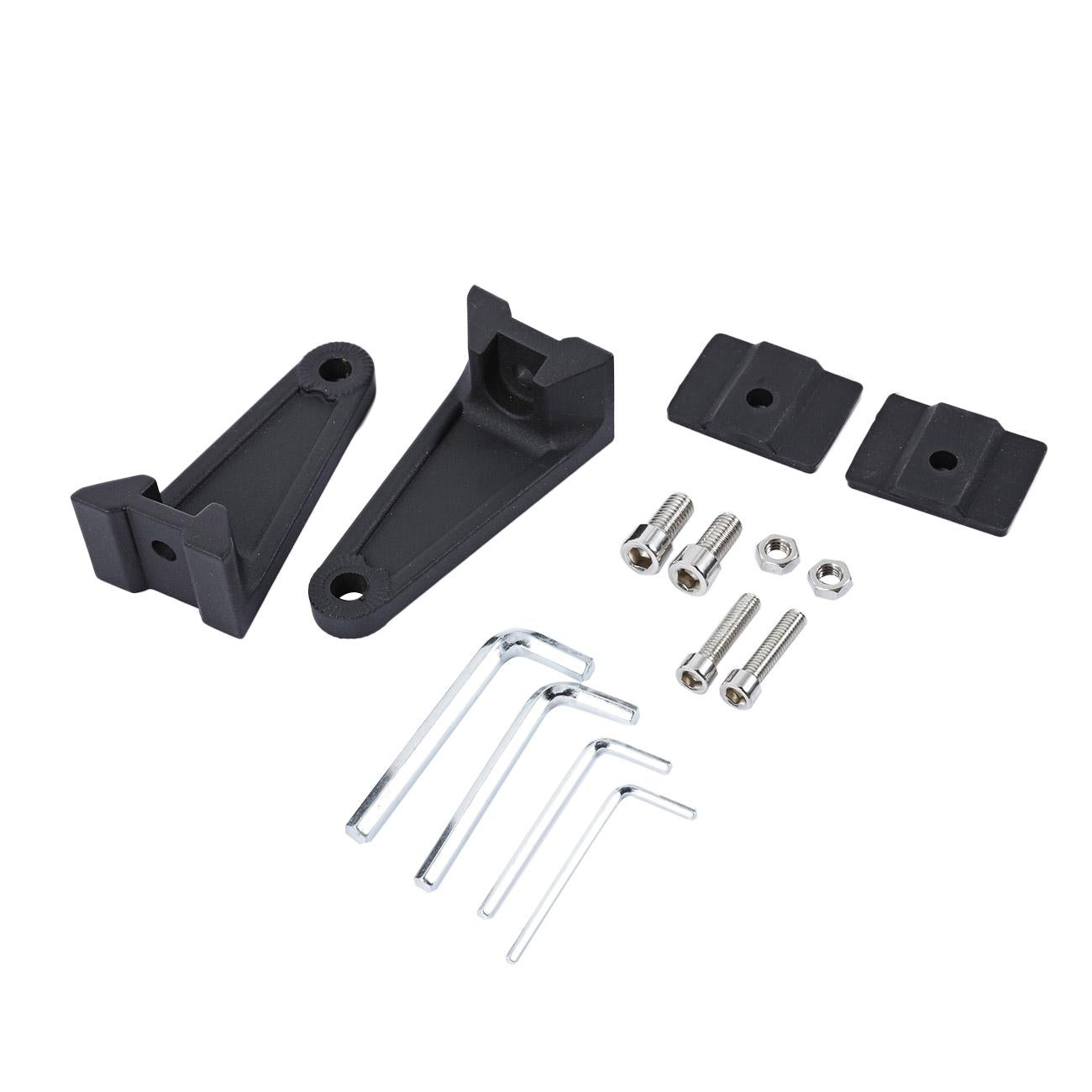

  • 22" Curved CREE LED Light Bar 5D Lens 12000LM mounting kit
1 of 8

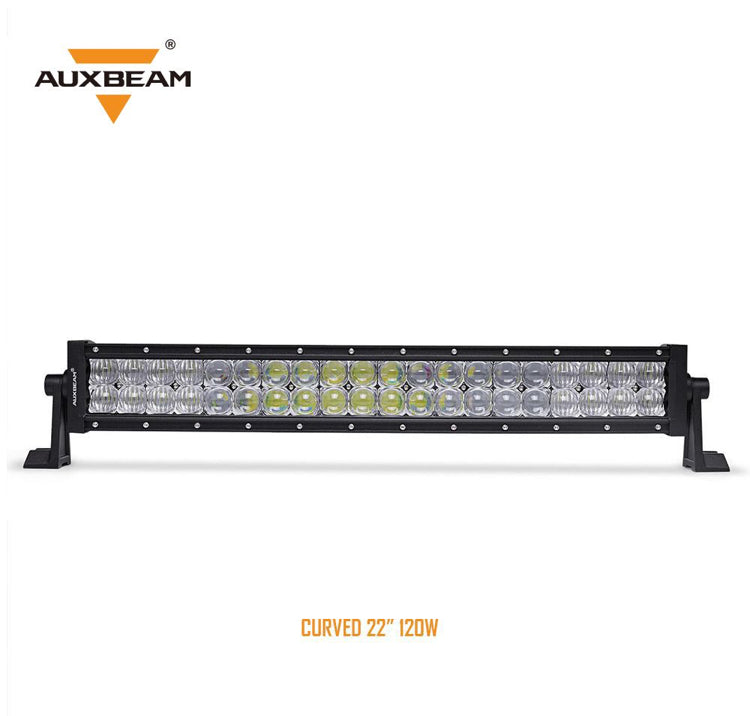

22" Curved CREE LED Light Bar 5D Lens 12000LM

Regular price $159.00 NZD
Regular price Sale price $159.00 NZD
Tax included. Shipping calculated at checkout.

22 Inch Curved LED Light Bar CREE Combo with 5D Lens-120W 12000LM

Including free Wiring Harness


Auxbeam is world famous for top quality LED automotive lighting and are now available in NZ through 4WD Warehouse



SPECIFICATIONS

  • Power: 120W
  • Number of Chips: 40pcs*3W intense CREE LED
  • Working Voltage: DC 10~30V (fits 12V/24V vehicle)
  • Luminous Flux: 12000lm
  • Color Temperature: Cold White 6500K
  • Beam Angle: Spot (30 degree) & Flood (60 degree) combo
  • Protection Rate: IP67
  • Working Temperature: -40~85 degree Celsius
  • Size(with bracket): approx 630 x 124 x 87mm or 24.8 x 4.9 x 3.4 inch
  • Size(without bracket): approx 565 x 76 x 87mm or 22.2 x 3 x 3.4 inch
  • Material: black extruded aluminum profile, high transmission PC lens
  • Aluminum side brackets, angle adjustable
  • 50,000 hours lifetime
  • Certified by CE & RoHS

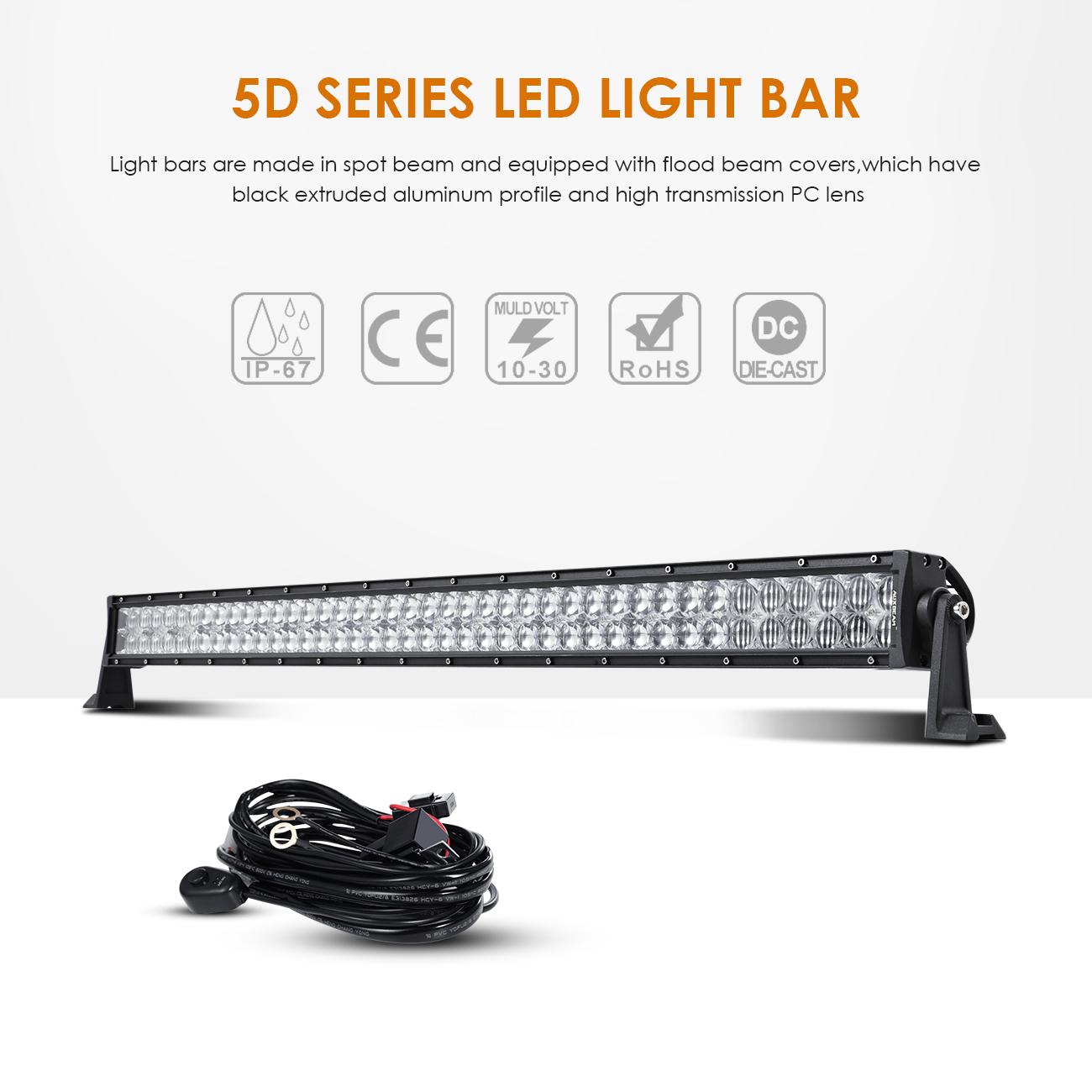

PRODUCT SERIES 5D Series
NUMBER OF CHIPS 40pcs*3W
LIGHT SOURCE CREE
TYPE OF REFLECTION Projector
SIZE 22 inch
SHAPE Curved
POWER 120W
BEAM PATTERN Combo
WITH/WITHOUT WIRING HARNESS With
CONFIGURATION Dual Row



FEATURES

  • Innovative 5D optic reflector lens
  • World famous CREE LED's
  • Spot & flood beam for optimal light spread
  • High quality aluminum housing for durability and heat sink
  • IP67 rated construction, anti-corrosion and shockproof

PACKAGE INCLUDED
1x 120W CREE Curved LED light bar

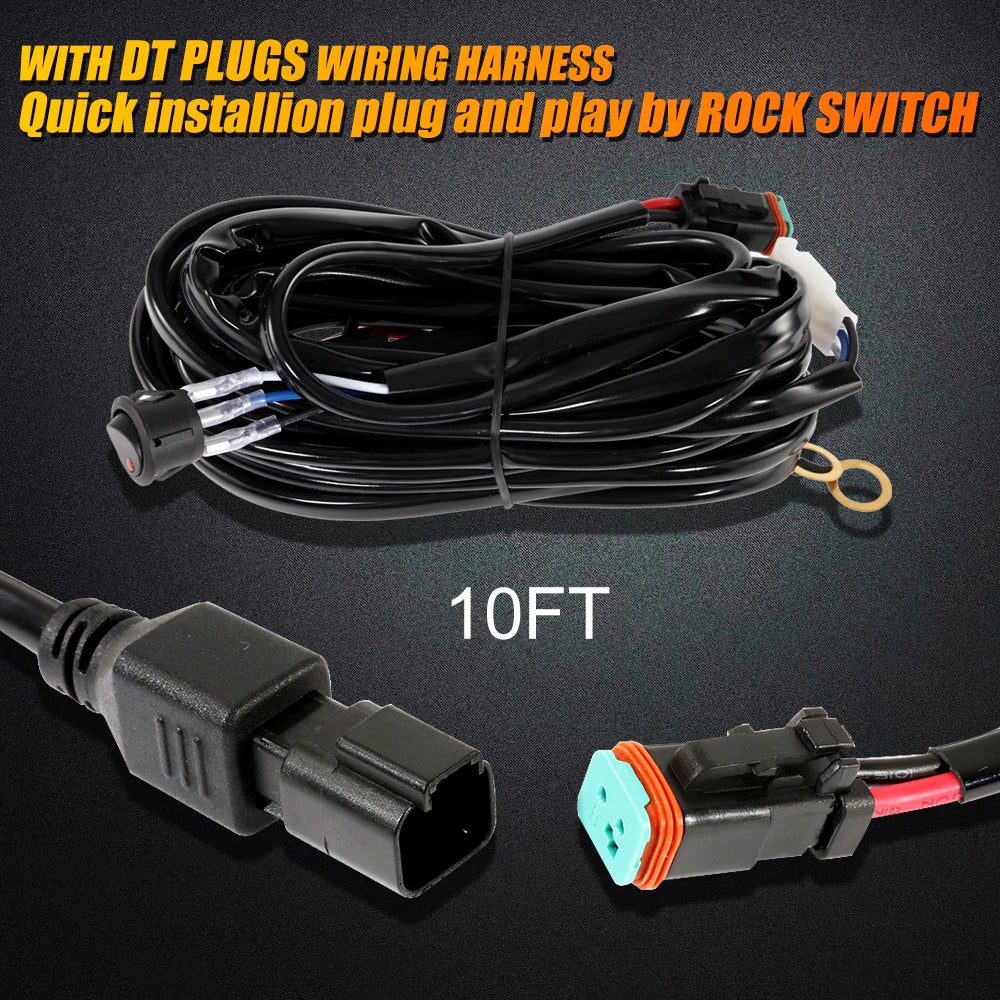

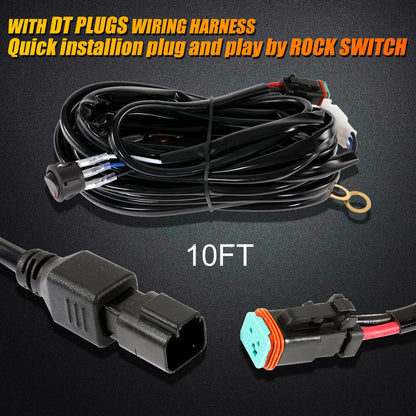

1x wiring loom harness kit with fuse and relay
Mounts and mounting bolts
